This project has been in progress since I first received my Raspberry Pi last July. Until now, I just haven’t had the time to record video.
The Picorder is a Pi/Arduino combination taking readings from 2 temperature sensors, a hall-effect magnetism sensor and an ultrasonic distance sensor which it then displays, with the aid of a Python script, on an LCD display. The Pi also displays it’s own IP address(es) which can come in useful sometimes!
Here is a list of components:
- Raspberry Pi Model B 512MB (although it would likely run on a 256MB)
- Dreamer Nano v4 (Arduino Leonardo clone from dfrobot.com)
- PiPlate prototyping board
- Edimax wifi dongle
- TMP102 temperature sensor
- SR-04 Ultrasonic distance sensor
- Light-resistant resistor
- MCP9700 active thermistor
- AL1302EUA-T Hall effect sensor
- A HD44780-type LCD
- Stripboard
The scripts for the Picorder are held on my GitHub redwing-pi repository. The main driver Python script is pipodcorder4.py.
This project is also detailed on my project page at Ryan Walmsley’s Pideas.co.uk site, which is a fantastic place to add your own Pi project.

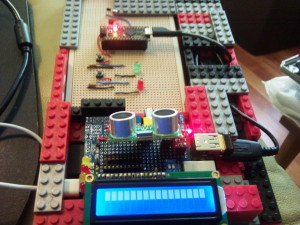

Here’s a photograph of the Picorder:
For a walkthrough of the components watch the following video:
See the device in action below:
I will be posting more technical details of the inner workings, code and such like, in the next week, so keep an eye on the blog using the RSS feed or subscribe via email at the top of the screen.
All the articles about, or related to, the Picorder are available here.
Hi!
Nice project! Why would you need both: raspberry pi and arduino? Couldn’t you do it only with raspberry pi? Why did you decide for this combination (pi + arduino)?
I am a 100% noob on this field, so thanks for you answer in advance 🙂
Excellent question. Four reasons, really. 1/ I wanted to learn more about electronics and playing with an Arduino lets me do that. 2/ I won a competition to win the Dreamer Nano v4 (the Arduino clone), so I wanted to use it. 3/ I loved the idea of taking a Pi and an Arduino and showing that they don’t need to be in competition with each other, but could work together well. Aaaaaand 4/ (most importantly) Some of the sensors I wanted to use required analog input channels, which the Pi does not provide. I could’ve hooked up an analog-to-digital converter, of course, but (because of the previous two reasons) using the Nano seemed like more fun 🙂
I’ve been working on getting a SR-04 ultrasonic sensor working. I’m guessing it is on the arduino since the measurement of the returning pulse width requires a bit more processor attention than the RPi can give (IMO…I’m probably wrong).
I’d love to dive into your code a bit more. Any hints on where to start if I am just after the SR-04 [for now]?
Actually, the SR-04 runs direct from the Pi. It uses ground/power plus two GPIO pins – one for trigger, one to listen to the echo.
Take a look at: https://github.com/recantha/picorder-v3/blob/master/picorder.py
The readUltrasonic() function is the one that is used.
